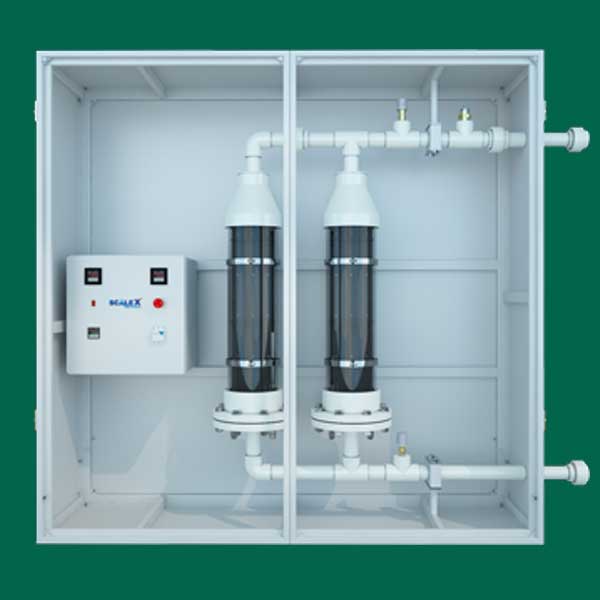

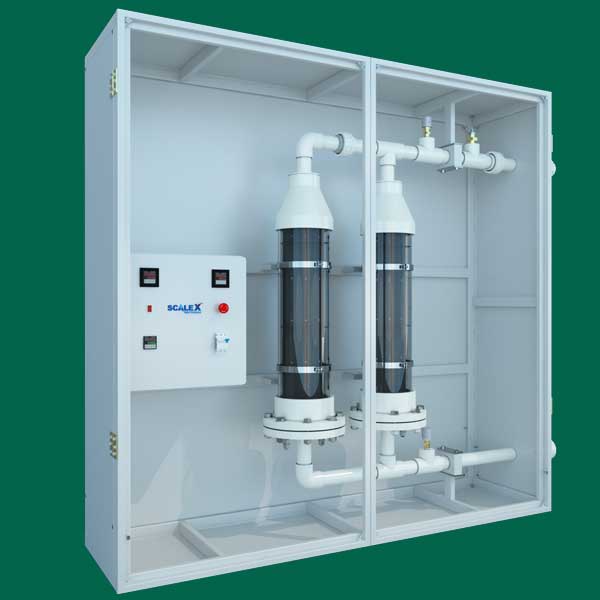

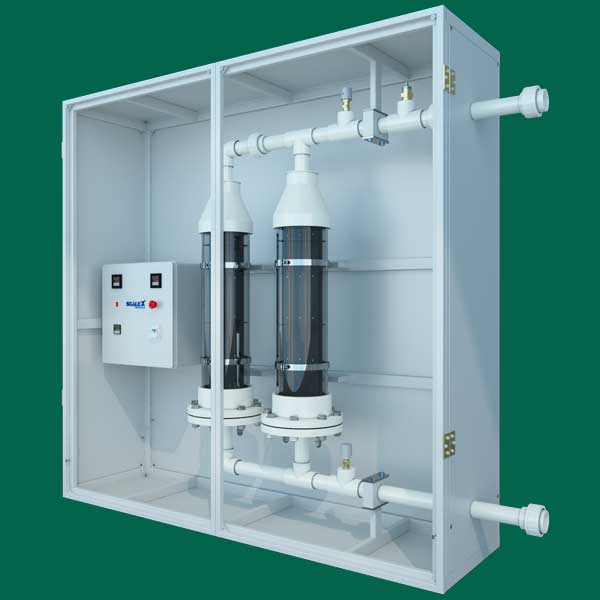

Electrolytic Water Conditioner (ScaleX) - Heavy Duty
24 hours continuous operation

Model No.:
Product Description

ScaleX breaks the water hardness ions of Calcium Carbonate, Magnesium Sulphate, Ferus, Manganese and Colloidal Silica which are dissolved in the water and keeps them disintegrated and converts from divalent ion to monovalent ion.

No Salt Recharging        No Maintenance        No Chemicals        Eco-Friendly

No filters to Change        Fit & Forget        One Time Investment

Life span Up to 8000 hours of operation
  • Titanium substrate for both anode and cathode, exotic nature.
  • Platinum group of precious Mixed Metal Oxide coated.
  • Designed for residual Cl2 in the form sodium hypochlorite, typically 0.5 ppm.
  • Zero chemical and no salt required for water treatment, since ScaleX works with naturally present chlorides.
  • Adaptive to most surface or ground water, since the ionization needs only 20 ppm of chloride presence in water.
  • Less than 50 watts of power consumption per M3 of treated water.
  • Plug & Play device, no extra care for erection, easy to retrofit in existing water networks.
  • Self-Cleaning, no manpower required for operation. Automatic operation, based on overhead tank water level.
  • 8,000 hours operation life guarantee for cells.
  • Minerals in the water are retained.
  • Present in 65 countries; over 3000 installations worldwide.
  • Benefits
  • Uniform mix of disinfectants in entire water leads… Disinfection, Deodorisation and Decolourization.
  • Scale forming ions will be reduced to a level that prevents the deposition in water distribution system.
  • Removal of all existing scales including biofilm associated bacteria, leads to better capillary action.
  • Zero chemicals used. Saves costs for dosing equipment and transport.
  • Zero maintenance of cell till its designed life of 8,000 hours of operation.
  • No replacement of cartridges like traditional treatment plants.
  • No risk of overdosing or other accidents with chemicals.
  • One through (single pass) system.
  • Automatic operation. No manpower required for operation.
  • No Scale forming in the water circuit, prevents rust & pipe line corrosion.
  • No bi-product, No waste stream generation (No water wastage).
  • No change in water taste after treatment.
  • No softener required after ScaleX treatment.
  • Hydrogen rich water leads to Healthy growth of Plants, increased immunity of human & animals.
  • Prevents Stains on Floors, easily removes dirt & cleans well.
  • Protects and extents life of appliances. Prevents Stains on Utensils.
  • Cleans the cloth perfectly, protects the cloth texture & colour.
  • Protects the Skin & Hair from Dryness.
  • before    before
    Expected life of the ScaleX electrolyser is 8,000 hour(s) from the date of the installation.
    Mechanical warranty of the ScaleX lasting for 24 months form the date of the installation.

    During the period of warranty, the customer should notify to Tiaano, if any defects on workmanship and performance of ScaleX; Tiaano shall provide technical assistance if necessary. If needed, customer has to despatch the defective component to Tiaano’s site for the necessary repair, rectification and or replacement.
    The warranty won’t cover the ScaleX that has been modified, tampered or altered without authorisation. Once the warranty period is over, if the property owner / customer is expected to maintain the ScaleX continuously to enhance maximum life and quality, the replacement and or refurbishment shall be the responsibility of owner and Tiaano may be approached for the required guidance / service / replacement.

    Problems of Hard Water
  • Increasing the consumption of detergents, soaps and water.
  • Clothes lose their original colour and brightness.
  • Blockage in solar water heating system and plumbing system.
  • Hard scale on expensive taps and fittings.
  • Reducing shine on plumbing and sanitary wares.
  • Blockage in shower.
  • Reducing efficiency and life of all water bearing / carrying appliances.
  • Frequent blockage of RO Membrane due to the IONIC state of water.
  • Sticky water leads rough skin and frizzy hair.
  • Low heat transfer with high fuel cost.
  • Hampers plant growth and spoils soil fertility.
  • Specification
    Model Number
    Water treatment(LPH)
    Energy(Watts) / Hr.
    AC Volt required 230 ± 10 %
    Frequency Hz 50 / 60
    Raw water to reactor 15oC to 38oC
    Pressure 2 ~ 3 Bar
    Connections PVC / UPVC
    Protection glass IP-32
    Reactor Dia in Inch
    Min. chlorides in Water 20 ppm
    Treatment Expenses in Rs.
    Treatment Capacity (LPH)
    Model Number Tiaano
    Water to be treated (M3/Hr.)
    Power consumption (Watts)
    Power consumption (KWh)
    EB (power) Charges Rs.12/- per unit
    Treatment charges in Rs.
    Number of users
    Treatment charges per person in Rs.
    Treatment charges per person / month in Rs.
    Treatment charges per 1000 (M3) Liters in Rs.
    Treatment charges per person / year in Rs.
    Note: Calculation based on 150 litres for a person per day
    Effects of ScaleX

    ScaleX action immediately starts…

  • Disinfect the raw water.
  • Break the ionic state of the water into molecular state.
  • Loosen existing scale on entire pipeline circuits after ScaleX.
  • Effect after a week: Existing scale begins break as small particles and flow down through your water system. You may notice microscopic particles in the water coming from the taps, shower heads. It should be easier to wipe and clean ceramic, plastic, glass and metal surfaces. By now the quantity of bath soap, dish soap, laundry detergent and laundry softening agents can be reduced.

    Effect after three weeks: Scale should have softened on Faucets, Showerheads, and frequently used appliances such as Kettle heater, Coffee makers, Geyser etc. With the continuing break down and reductions of scale from the heating surfaces of water heaters, water should heat up quicker using less energy.

    Effect after two months: Any Scale Crust or Stains in toilets or under faucets will have started to soften and will be easier to remove. No new stain or crust should form. *Depending on the water hardness in your area, full effects can take up to 12 weeks, especially if the system has been heavily scaled over many years.

    No Salt Recharging        No Maintenance        No Chemicals        Eco-Friendly

    No filters to Change        Fit & Forget        One Time Investment

    Long-life Up to 40 years        24 Months Warranty
